AHD features:
The technology uses a progressive scan while forming a signal and division of brightness and color components of an analog signal: that allows eliminating a blur and blinking, improving a color reproduction.
Reliable and inexpensive connection
AHD data transmission technology doesn’t lay a big claim on a coax cable quality. That’s why any available cable can be used for data transmission, including a composite one.
Long distance of a network laying without quality losses
Video data is transmitted without quality losses at the distance of 500 m.
Qualitative video without latencies
No signal latencies, indicative for IP-systems.
1.Power adapter or BNC cable is not included,please buy it from below link
2.Make sure you have a AHD DVR for the AHD cameras .or you will can’t view or record video.
Here is a professional AHD NVR for your reference. It is very very very important !!! Pls don’t buy it if you don’t have AHD DVR !!!
High Quality Night Vision Smart Infrared Cut Filter (ICR)
Camera has a very good night image quality. Infrared Cut Filter to ensure the highest quality images – day and night. During the day, the infrared cut filter drops in front of the lens to block the infrared lights from entering. This ensures that they do not affect the colors of the footage. When lighting levels become too low, this filter is automatically disengaged to allow the infrared light into the lens of the camera. This is when the full-color image turns to a monochrome black and white.
Support Audio Record
Built-in a integrated microphone let you hear the sound around the camera,records what people say,
make it authentic with sound video recording.(Don’t support Two way audio)
Motion Detection & Email Alert
IP66 Waterproof Security Camera
Camera can suit for both outdoor and indoor usage.
Locate incident Video with Smart Playback
You can freely playback to any specific moment on the timetable of your recordings and enjoy it on a beautiful intuitive interface

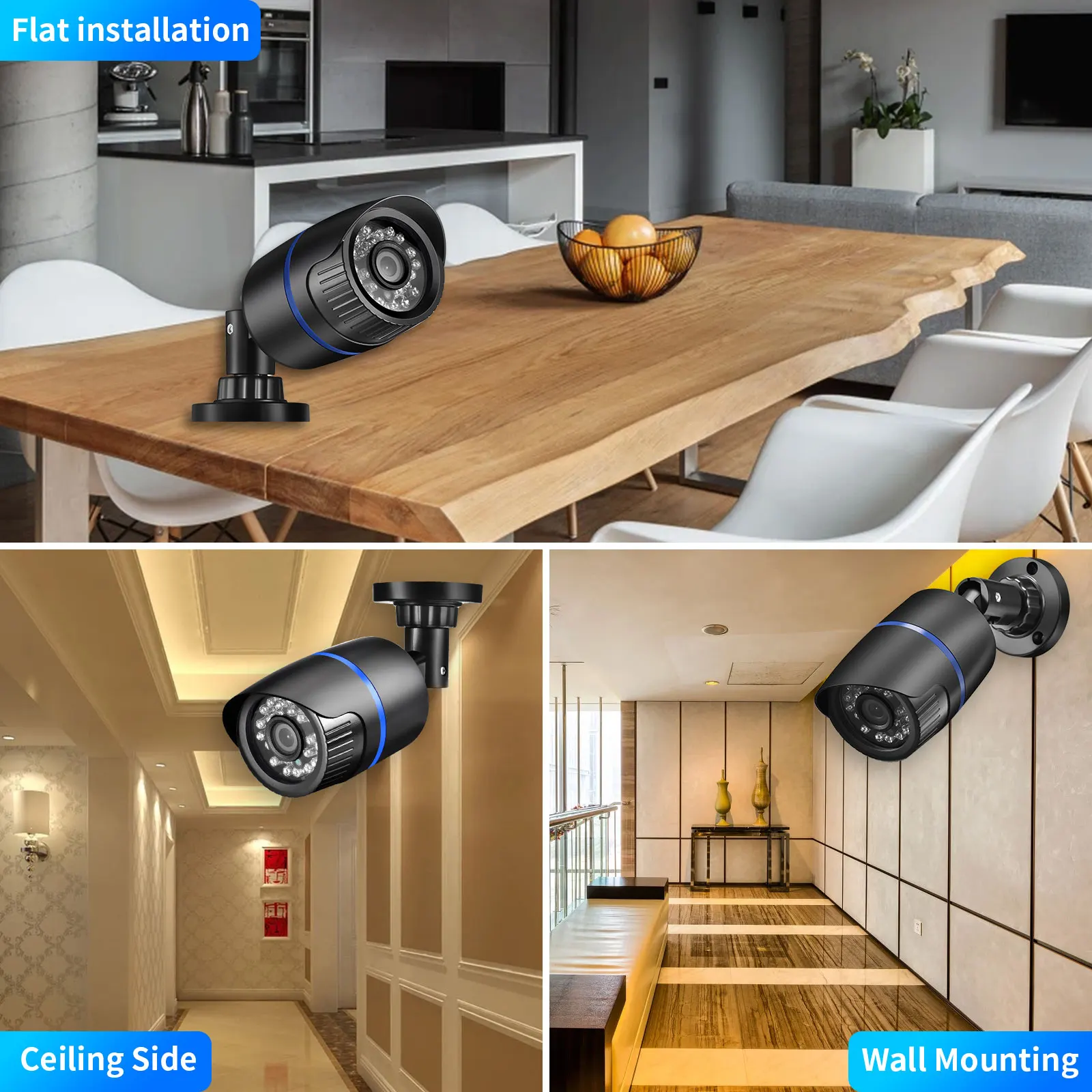

Ceiling
and Side
Description
1. AHD 720P,1080P,5MP
2. 2.8mm,3.6mm,6mm HD lens optional
3. Color CMOS Sensor, ICR
4. Metal housing,bullet camera outdoor indoor use
5. 4pcs array led light , 5-25M Max IR distance
|
Model
|
AHD 1080P,5MP
|
|
Sensor
|
CMOS sensor
|
|
Minimum Illumination
|
Color:0.01Lux,(F1.2,AGC ON),0Lux with IR
|
|
Black & White:0.001Lux,(F1.2,AGC ON),0Lux with IR
|
|
Photosensitive Resistance
|
1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage
|
|
Shutter
|
1/50(1/60) seconds to 1/10,000 seconds
|
|
Day and Night Function
|
Support IR-CUT
|
|
Infrared light
|

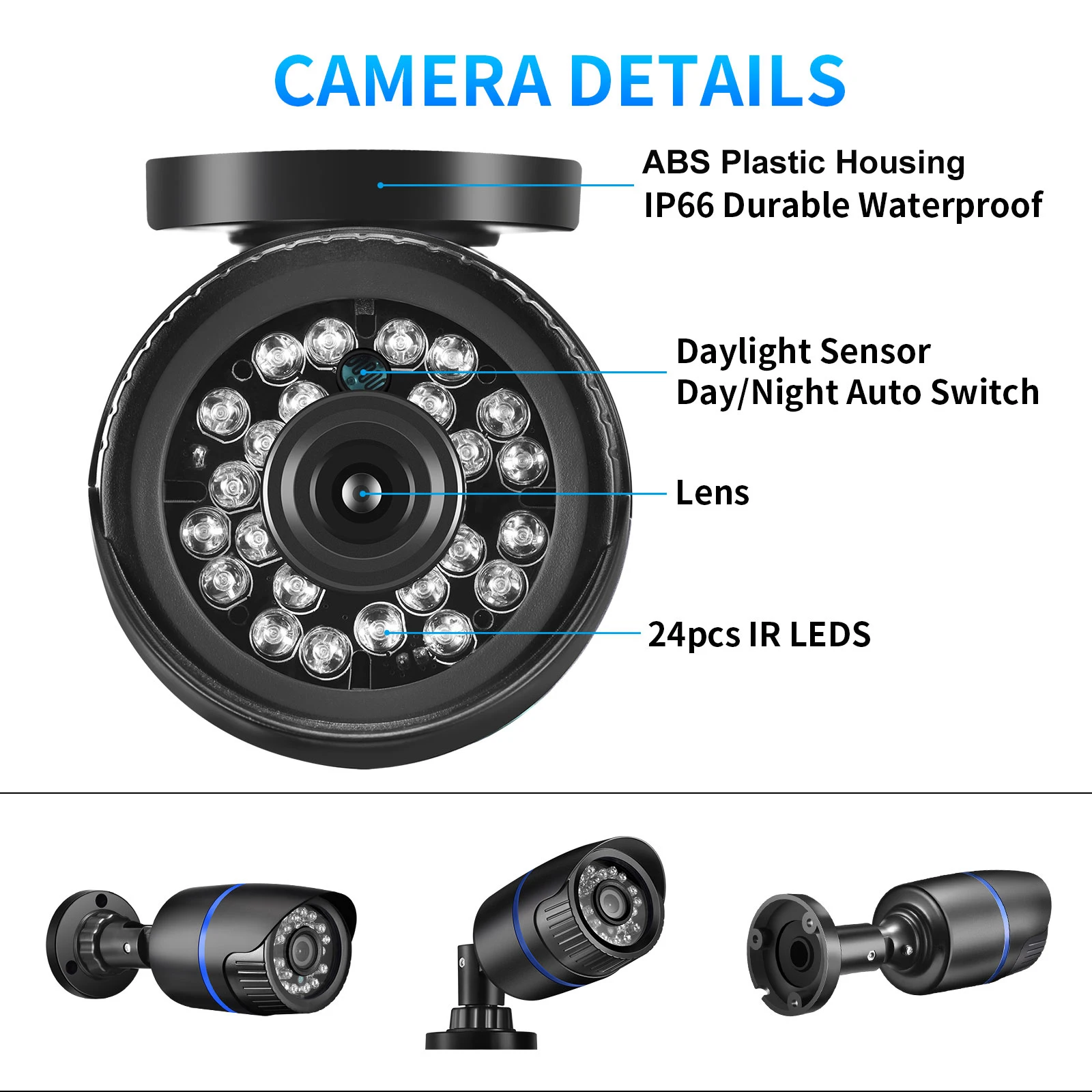

24pcs IR Leds
|
|
Lens
|
2.8mm/3.6mm/6mm/8mm
|
|
Synchronous Mode
|
inter-sync
|
|
Noise-signal Ratio
|
>58dB
|
|
Temperature and Humidity
|
– 10’C ~ 60’C, humidity is less than 90% (no condensation)
|
|
Power
|
DC12V±10%
|
|
Consumption
|
<5W
|
|
Dimension
|
17.6*6cm
|
|
Housing material
|
ABS plastic
|
Packaging included:
1xAHD Camera(Power supply not included)
Note:if you buy AHD 5MP camera, make sure your DVR is AHD 5MP DVR.
AHD camera must be connected to AHD DVR, not analog 960H DVR or TV monitor directly.
